Automatic Electric Apple Carrot Fruit Juice Extractor Belt Press Machine

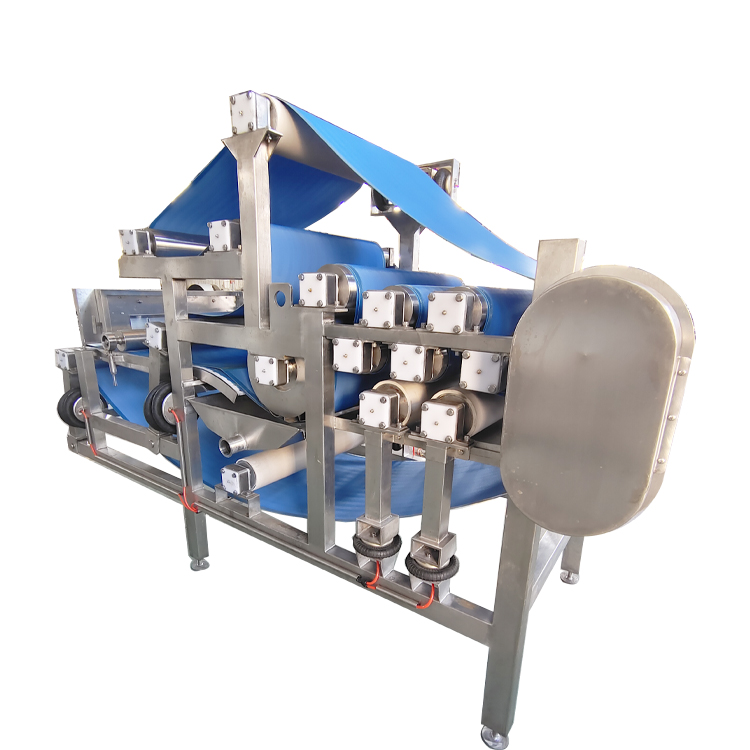

Description of belt press juicing machine
Thisvegetable juice extract machine offers versatile applications across the juice processing industry, particularly effective as a berry juicing machine and belt press juicing machine for various fruits, nuts, and vegetables. The berry juicing machine employs a dual-pressure system combining multi-stage folding stick pressurization with pneumatic roller pressurization, delivering exceptional pressing force and significantly improved juice yield.
Designed with automation capabilities, this belt press juicing machine features automatic inlet and outlet systems enabling continuous operation. The vegetable juice extract machine's design simplifies operation and maintenance, making it ideal for juice production facilities.
Remarkably, this berry juicing machine can increase juice yield by 20-30%, achieving extraction rates as high as 70-80% depending on raw materials. Beyond juice extraction, the vegetable juice extract machine also proves valuable for pressing and dewatering applications in food, chemical, and light industries, handling various owdered and pulpy materials with equal efficiency.
Name | Belt Press Juicing Machine Vegetable Juice Extract Machine Berry Juicing Machine |
Model | PH-DYJ3 |
Capacity | 3000Kg/H |
Press belt width | 800mm |
Roller power | 0.18kw |
Voltage | 380V/50HZ |
Size | 2950*1000*1710mm |
Weight | 2000KG |
